IDEXX inVue Dx Cellular Analyser
Blood morphology
Automated quantification, classification and interpretation of blood morphology
The IDEXX inVue Dx Cellular Analyser lets you see cells like never before. Giving you greater insights into your patient’s health with detailed, objective information.
- Cell counts, images and blood morphology work together to give you a complete picture.
- Blood morphology without glass slides allows the cells to be analysed in their natural state with fewer limitations.
- Uniform distribution, multiple imaging planes and fewer artefacts mean more reliable results.
- Quantified data you can trend over time, helping support confident, consistent decisions.
- Up to 20x more cellular content analysed than traditional slide reviews, for greater diagnostic confidence.
Blood morphology parameters
- Red blood cell agglutination (canine)
- Spherocytes (canine)
- Acanthocytes (canine)
- Keratocytes (canine)
- Schistocytes (canine)
- Reticulocytes
- Neutrophils (% and #)
- Lymphocytes (% and #)
- Monocytes (% and #)
- Eosinophils (% and #)
- Basophils (% and #)
- Immature neutrophils (% and #)
- Other nucleated white blood cells
- Platelet estimate, even in the presence of clumped platelets
Note: Parameters are validated for canine and feline samples except where noted.
How practices are putting it to work.
When veterinary teams talk about what’s working in their clinics, the results speak for themselves. Take a look at what veterinarians and their teams are saying about the IDEXX inVue Dx analyser.
“Adding the inVue Dx to our in-house laboratory has consistently increased our veterinarian’s confidence in the CBC results, especially with feline platelets and immature neutrophils. It’s challenging when ProCyte One says there is something going on requiring blood morphology. Now I have inVue Dx to automate that process. It has allowed us to improve our clinical decision-making and, ultimately, our patient care.”
—Rebecca Lupole, DVM
“We have the cost of the inVue Dx incorporated automatically into every CBC run. This ensures that we can run the inVue Dx when needed without the veterinarian having to worry about any additional cost.”
—Meghan Myers, VMD
Case study
Zoe the lionhearted.
See how a comprehensive haematology assessment with ProCyte and IDEXX inVue Dx analysers quickly confirmed Zoe’s immune-mediated haemolytic anaemia and led to faster diagnosis and effective treatment.
Preparing samples
Slide-free testing helps take the guesswork out of sample prep. It helps reduce artefacts caused by smear and stain variability, so results are more comprehensive and easier to trust.

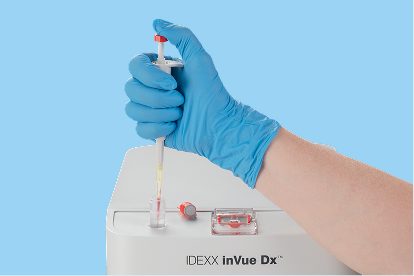

1. Add 20 μL of well-mixed EDTA whole blood to the sample tube.

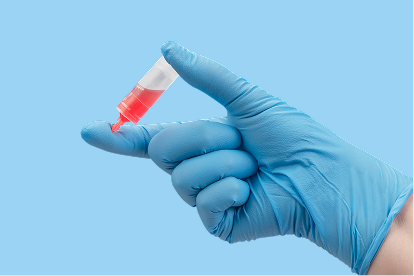

2. Cap the sample tube and invert it 5–10 times (do not shake the tube).

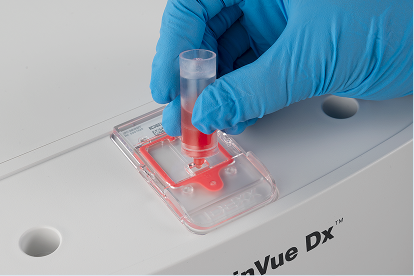

3. Remove the cap tab and dispense 6 drops into the cartridge port.
If you’re a visual learner, you’re in luck. Watch this short video that walks through how to prepare a blood sample for analysis on the IDEXX inVue Dx Cellular Analyser. It’s a quick, see-for-yourself way to understand the process.
Accuracy in action.
The IDEXX inVue Dx Cellular Analyser delivers results with excellent correlation to ProCyte Dx automated haematology, as well as to pathologist blood film interpretation when morphologic changes need further evaluation.
Understanding results
The IDEXX inVue Dx analyser delivers complete haematology reports that go beyond numbers, with clear images you can share right in your practice. When pet owners see what you’re seeing, it helps them understand the diagnosis and follow-through with your recommendations.
Uses key CBC values, like RBC, HCT and WBC, to add meaningful morphologic context and report abnormal cell percentages.
Provides a detailed 6-part white blood cell differentiation when immature or abnormal cells need closer attention.
Provides dependable platelet counts, even when platelet clumps are part of the sample.

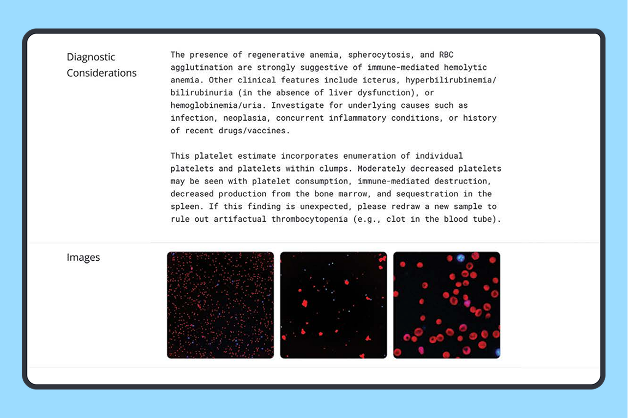

Supports faster interpretation and more confident next-step planning with Diagnostic Considerations.
How the IDEXX inVue Dx and ProCyte analysers work together.
The ProCyte One and ProCyte Dx haematology analysers give you a comprehensive CBC. Add the IDEXX inVue Dx analyser to the equation, and its automated blood morphology helps complete the picture. So you see the full story in just minutes.

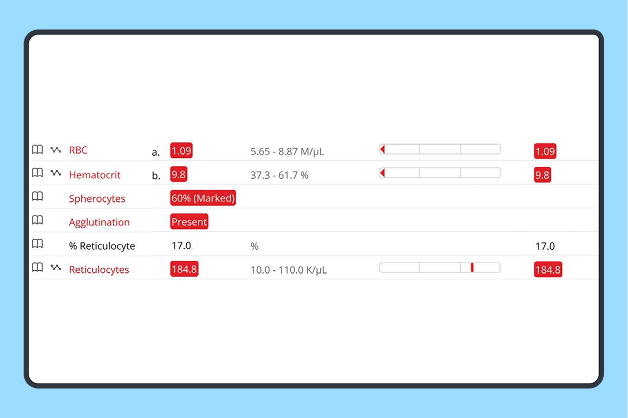

Clear, quantitative RBC insights.
Get detailed RBC morphology results including poikilocytes, reported as easy-to-understand percentages and severity (mild, moderate, marked) and coupled with detailed Diagnostic Considerations.

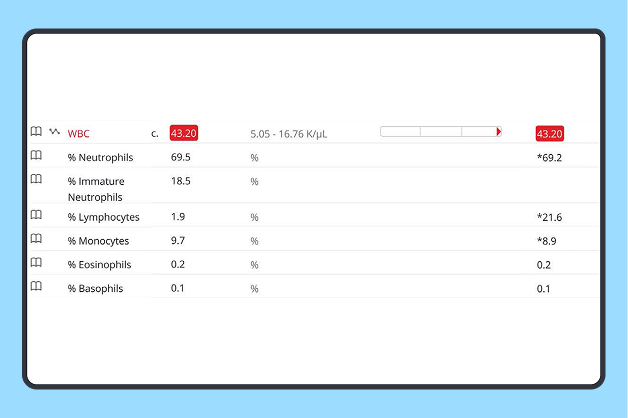

A smarter white blood cell differential.
The IDEXX inVue Dx analyser expands on the ProCyte 5-part WBC differential and automatically identifies and quantifies immature neutrophils to detect left shifts and confirm clinically significant inflammation.

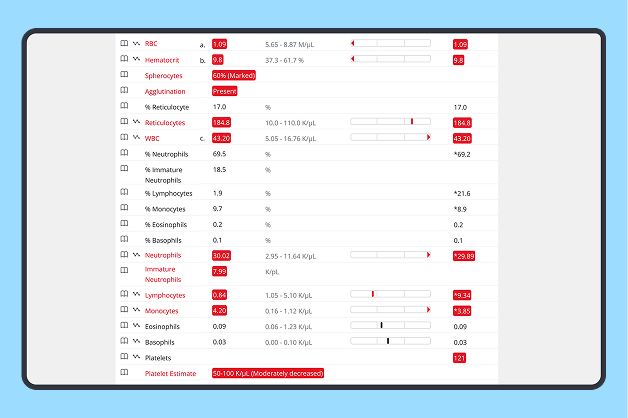

Confidence in platelet counts, even when it’s tricky.
Platelet estimates help confirm adequacy even when in clumps and align with the industry standard values delivered by reference laboratory evaluations.
Deeper insights, better outcomes.
The IDEXX inVue Dx analyser taps into data from the ProCyte One and ProCyte Dx analysers, automatically incorporating RBC, HCT and WBC values to help guide the morphological assessment.
Frequently asked questions
To run a sample, confirm consumables are loaded, prepare the sample as instructed for your instrument and follow the on-screen workflow to begin testing. Instrument-specific “Run a Sample” quick guides are available for step-by-step instructions.
You can find results directly on the analyser under the Results tab, in connected practice software, or in cloud-based archives depending on your setup. Instructions for viewing, filtering and exporting results are available in your instrument’s support section.
Ensure your analyser is connected to the internet. That’s it! The IDEXX inVue Dx analyser automatically updates its own software. For the IDEXX VetLab Station, navigate to Settings → Software Update, and follow the prompts. You can review release notes and update requirements on the product support page.
The IDEXX inVue Dx analyser is a Pay Per Run system. Only pay for what you run! Shipments are sent automatically depending on your volume of use. View shipment status through your online customer portal.
Resources
Just getting started with the IDEXX inVue Dx analyser? We have a selection of guides, videos and other resources that make it easy to get up to speed.
Test menu
This is where you’ll find the complete IDEXX inVue Dx menu for blood morphology and cytology tests.
